Product details of 3pdt Funny Cat AG-5 Envelope Filter & Sustainer PCB only


3pdt Funny Cat AG-5 Envelope Filter & Sustainer PCB only


Product Description

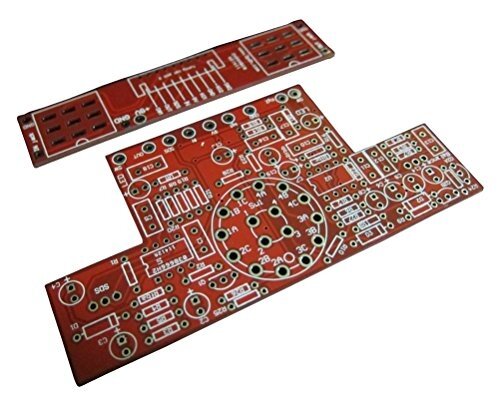

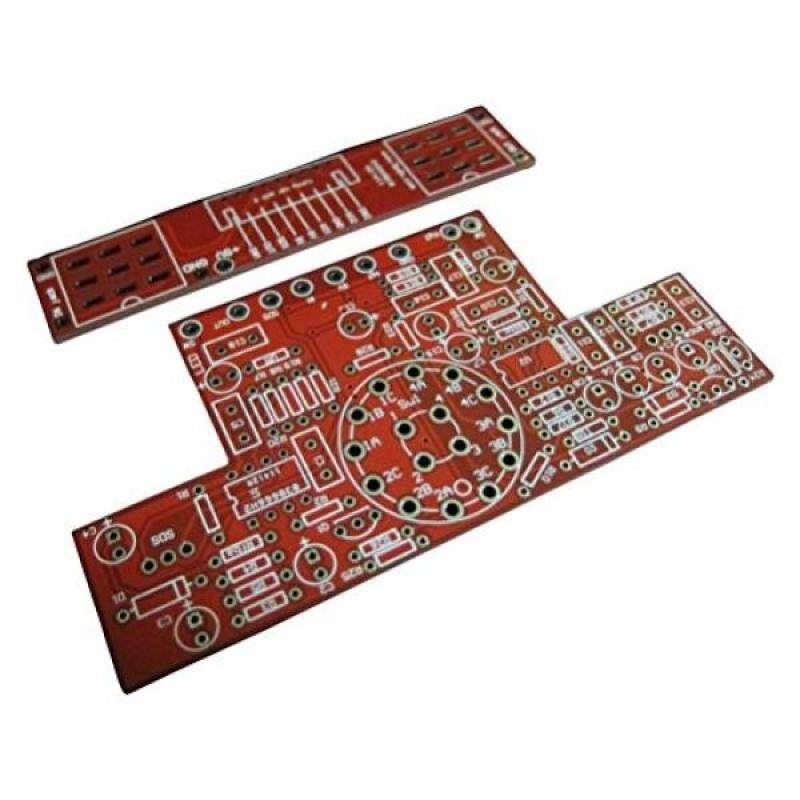

ATTENTION: This listing is for the PCB only, you will need to source your own parts. Color printed instructions and a Bill of materials are included, a schematic is NOT included. The PCB to build the ROL. Funny Cat Pedal. Its an envelope Filter (harmonic mover) and a soft distortion sustainer (SDS) in one Pedal. The rotary switch can choose between 3 envelope modes. Position 1 somehow like soft, position 2 harder, position 3 "underwater spaceship" sound. A Potentiometer controls the effect level. The SDS side has an output volume control. Because the internal wiring of the original Funny Cat is burdensome we designed a daughter board for the 2 footswitches. On the daughterboard there is place for a a 9pin plug, all you have to do now is connect the 9pin cable with the plug and main PCB board. Also The "Funny Cat" can fit in a standard 1590BB enclosure now. The PCB Boards are double sided, through-contacted and have silk screen printing for easy assembling. The wiring diagram and the material list are included. The PCB has the usual connections: Ground, IN, OUT, 9V The PCB Kit is verified and working. difficulty level: difficult

Feature

Build the rare Funny Cat AG5 pedal with this PCBs
There is also a PCB for the 3pdt footswitches included
Brand : 3pdt
Item model num : A-A-097
Package Dimensions(LxWxH) : 18x11x1cm ; 27 g

Specifications of 3pdt Funny Cat AG-5 Envelope Filter & Sustainer PCB only

What's in the box:
  • 1 x 3pdt Funny Cat AG-5 Envelope Filter & Sustainer PCB only
General Features:
SKU NO037MEAC82PFYANMY-175160574
Model Not Specified
Warranty type No Warranty
