Monoprice Tube Overdrive Mini Pedal Malaysia

Product Description

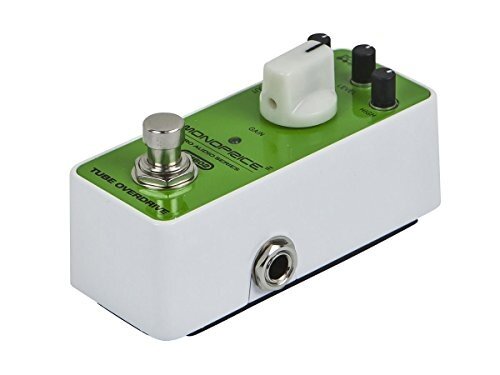

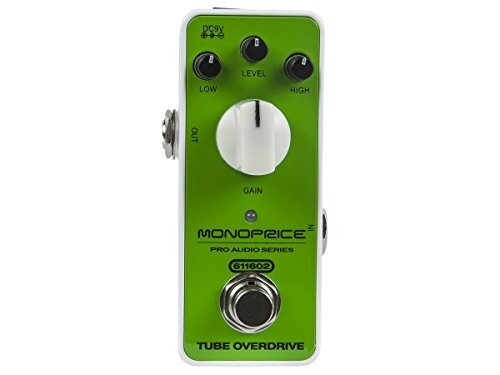

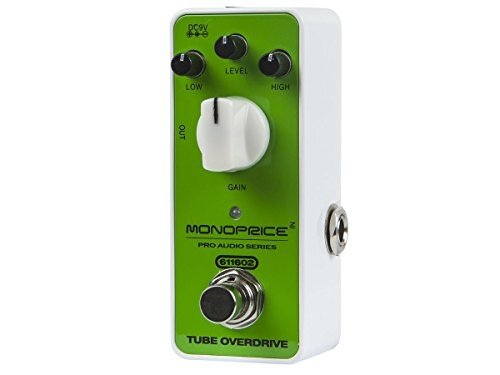

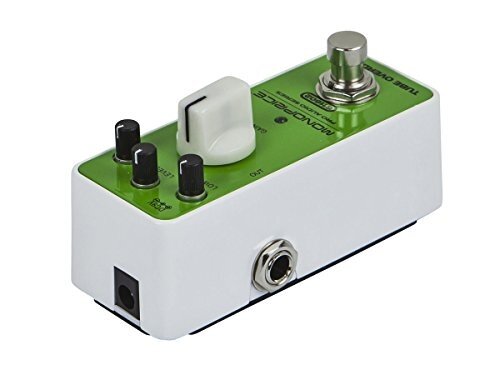

Add overdrive to your pedal board with this Tube Overdrive Mini Pedal from Monoprice!This mini pedal produces a simulated tube response for a warm, vintage sound. At low drive settings, it generates a vacuum tube-like overdrive effect, while at high drive settings it generates a screamer clipping-fuzz effect. The pedal features true bypass, so it won't alter your tone when not actively in use.The casing is metal for long term durability. It is powered using a 9VDC power adapter with a negative tip/center, such as our 9V Power Supply for Guitar Pedals (PID 611690). Note that the manual erroenously lists the DC connector size as 3.5/1.1mm. The connector is actually 5.5/2.1mm, which is the same as that of the 611690 power supply. The manual will be updated and posted here as soon as possible.Full Specs:• Input: 1/4" monaural TS jack (impedance: 10 megohms)• Input Impedance: 10 megohms• Output: 1/4" monaural TS jack (impedance: 150 ohms)• Output Impedance: 150 ohms• Power Requirement: 9 VDC AC adapter (tip/center negative plug)• Current Draw: 33mA• Dimensions (WDH): 1.8" x 3.7" x 2.0" (46 x 94 x 50 mm)

Feature

Mini pedal produces a simulated tube response for a warm, vintage sound
Low drive settings, it generates a vacuum tube-like overdrive effect
High drive settings it generates a screamer clipping-fuzz effect
The casing is metal for long term durability
It is powered using a 9VDC power adapter with a negative tip/center
Brand : Monoprice
Item model num : 611602
MPN(PartNumber) : 611602
EAN : 0757901814433
Product Dimensions(LxWxH) : 11x6x5cm ; 218 g
Package Dimensions(LxWxH) : 12x6x6cm ; 218 g
